Surface Mount

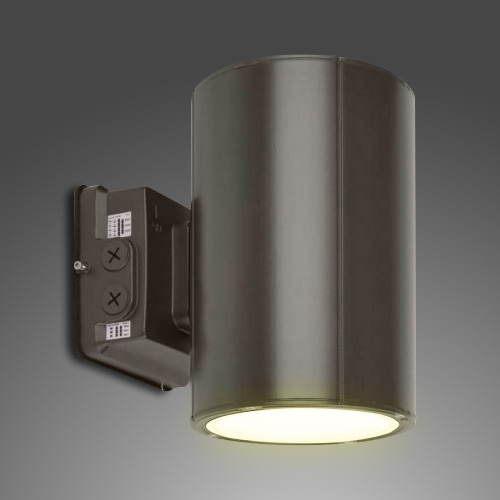

Troy 4X (TY4X)

• DRIVER — Universal Voltage 120/277V Electronic Driver with 0-10V dimming.
• FINISH — Durable polyester powdercoat finish applied over pre-treated surfaces.
• HOUSING — Heavy gauge aluminum cylinder fully sealed against external contaminants.
• LIGHT ENGINE — Energy efficient LED is standard. Selectable Wattage and CCT(80CRI) can be adjusted via switches located on the side of the fixture
• LIGHT DISTRIBUTION — Light distribution (Narrow Beam 25° / Wide Beam 75°) and Light Direction (Up/Full/Down) can be adjusted via switch located on the side of the fixture.
• LENS — Clear Tempered Glass.
• MOUNTING — Wall Mount featuring Arm.
• OPERATIONAL LIFETIME — 50,000 Hours
• OPERATIONAL TEMP RANGE — -40°C to 40°C | -40°F to 122°F
• PHOTOCELL — Standard Photocell. Can be disabled with included cover cap.
• COMPLIANCE — Built to comply with U.S. and Canadian Safety Standards. cUL/UL Listed for Wet Locations.
• WARRANTY — 5-Year Limited Warranty.

Cutsheets

Applications:

This fixture is approved for installations of the following types.

Suitable Conditions:

Dry  Damp  Wet
